Plug-in CANopen module for SIMATIC® ET200S systems
Item number 020570-B
The Ixxat 1 SI CANopen is a compact module for SIMATIC ET200S modular I/O systems, offering an easy and cost-effective way to connect CANopen devices. It enables seamless integration and control of CAN/CANopen networks via PROFIBUS or PROFINET, without extra gateways, facilitating the expansion of automation systems and increasing their efficiency.
The Ixxat 1 SI CANopen seamlessly integrates CANopen devices with SIMATIC ET200S systems, enabling smooth interaction between PROFIBUS or PROFINET controllers and CAN/CANopen fieldbus devices.
With the possibility to connect up to 126 CANopen responder nodes in commander mode, the module offers scalable system expansion without significant cost increase.
The isochronous operation mode supports efficient real-time communication, which is essential for time-sensitive applications.
The Ixxat 1 SI CANopen module can be smoothly replaced during operation without system shutdown, minimizing downtimes.
Uncomplicated configuration thanks to integration into the hardware catalogue of the SIMATIC STEP 7 or TIA Portal configuration environment.
Supports transparent CAN 2.0A for custom protocol implementation and enhancing PLC programming efficiency with ready-made function blocks available in the SIMATIC STEP 7 portal.
The ixxat 1 SI CANopen module is supported by all interface and CPU modules of the SIMATIC ET200S modular I/O sytem, with the exception of the Basic and Compact versions.
A protocol converter that connects EtherCAT and Interbus CU control systems
The Anybus X-gateway EtherCAT Slave to Interbus CU Slave enables you to connect any EtherCAT system to any Interbus CU control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects Modbus RTU and POWERLINK control systems
The Anybus X-gateway Modbus RTU Slave to POWERLINK Device enables you to connect any Modbus RTU system to any POWERLINK control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
Enable seamless integration of serial devices to Studio 5000
The Anybus EtherNet/IP to Modbus TCP Linking Device converts Modbus TCP to EtherNet/IP, enabling you to connect any Modbus TCP device to a Logix PLC control system. The linking device presents Modbus TCP data as easily processed I/O data, offloading the PLC from working with extra calculations and allowing for seamless integration with Studio 5000.
The Ixxat SG-gateway is used to integrate various industrial and energy-related devices into SCADA or cloud systems. It enables secure and reliable communication between energy systems, control rooms and industrial automation systems.
A protocol converter that connects Modbus TCP and Modbus TCP control systems
The Anybus X-gateway Modbus TCP Server to Modbus TCP Server enables you to connect any Modbus TCP control system to any Modbus TCP control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects AS-Interface devices to PROFINET-IRT PLCs
The Anybus X-gateway AS-Interface Master to PROFINET IRT Device enables you to connect any AS-Interface device or equipment to PROFINET IRT control systems. It can be used when there is no existing AS-Interface control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects DeviceNet devices to Modbus RTU PLCs
The Anybus X-gateway DeviceNet Master to Modbus-RTU Slave enables you to connect any DeviceNet device or equipment to Modbus-RTU control systems. It can be used when there is no existing DeviceNet control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects Interbus CU and Modbus TCP control systems
The Anybus X-gateway Interbus CU Slave to Modbus TCP Server enables you to connect any Interbus CU system to any Modbus TCP control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects CANopen and PROFINET-IRT FO control systems
The Anybus X-gateway CANopen Slave to PROFINET-IRT FO Device enables you to connect any CANopen system to any PROFINET-IRT FO control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
KNX to Modbus TCP & RTU - 250 points
Integrate any KNX device or installation with a Modbus BMS or any Modbus TCP or Modbus RTU controller. This integration aims to make KNX communication objects and resources accessible from a Modbus-based control system or device as if they were a part of the Modbus system and vice versa.
A protocol converter that connects DeviceNet devices to PROFIBUS PLCs
The Anybus X-gateway DeviceNet Master to PROFIBUS Slave enables you to connect any DeviceNet device or equipment to PROFIBUS control systems. It can be used when there is no existing DeviceNet control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects EtherNet/IP and EtherNet Modbus TCP control systems
The Anybus X-gateway EtherNet/IP Slave -Ethernet Modbus TCP Slave enables you to connect any Modbus TCP system to any EtherNet/IP control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects ControlNet and Modbus RTU control systems
The Anybus X-gateway ControlNet Adapter to Modbus RTU Slave enables you to connect any ControlNet control system to any Modbus RTU control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
(product was not in this initial legacy product list)
BACnet/IP & MS/TP to Modbus TCP & RTU - 3000 points
Integrate any BACnet MS/TP or BACnet/IP server device with a Modbus BMS or any Modbus TCP or RTU controller. This integration aims to make BACnet objects, data, and resources accessible from a Modbus-based control system or device as if they were a part of the Modbus system and vice versa.
KNX to Modbus TCP & RTU - 1200 points
Integrate any KNX device or installation with a Modbus BMS or any Modbus TCP or Modbus RTU controller. This integration aims to make KNX communication objects and resources accessible from a Modbus-based control system or device as if they were a part of the Modbus system and vice versa.
A protocol converter that connects Interbus FO and PROFINET-IO control systems
The Anybus X-gateway Interbus FO Slave to PROFINET-IO Device enables you to connect any Interbus FO system to any PROFINET-IO control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects CANopen devices to DeviceNet PLCs
The Anybus X-gateway CANopen Master to DeviceNet Adapter enables you to connect any CANopen Master device or equipment to DeviceNet control systems. It can be used when there is no existing CANopen control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
The CAN-GW100/RS232 is a CAN to RS232 gateway enabling connection of devices with RS232 interface to CAN systems. The device offers an CANopen operation mode for easy integration into CANopen based environments.
A protocol converter that connects POWERLINK and POWERLINK control systems
The Anybus X-gateway POWERLINK Device to POWERLINK Device enables you to connect any POWERLINK system to any POWERLINK control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
BACnet/IP & MS/TP to KNX - 600 points
Integrate any BACnet MS/TP or BACnet/IP server device with any KNX device or system. This integration aims to make BACnet objects data and resources accessible from a KNX system as if they were a part of the KNX system and vice versa.
Replaced by: IN701KNX1000000
Designed for the integration of any KNX device or installation with a BACnet BMS or any BACnet/IP or BACnet MS/TP controller. This integration aimed to make KNX communication objects and resources accessible from a BACnet-based control system or device as if they were a part of the BACnet system and vice versa. Please refer to the new product reference for further details.
DALI-2 to Modbus TCP - 1 DALI channel
Integrate any DALI/DALI-2 driver and DALI-2 light sensor or occupancy sensor with a Modbus BMS or any Modbus TCP controller. This integration aims to make DALI devices and their data and resources accessible from a Modbus-based control system or device as if they were a part of the Modbus system and viceversa.
Configurable automotive platform (6 x CAN + 2 x CAN FD)
The Ixxat FRC-EP170 Plus CANonly is a compact solution for automotive uses, focusing on CAN-based operations. Featuring LIN and six CAN channels, thereof two CAN FD and one CAN low-speed capable, it's ideal for logging, gateway, and residual bus simulation applications – easily configurable with the Ixxat Advanced Configuration Tool (ACT).
A protocol converter that connects EtherCAT and Lonworks control systems
The Anybus X-gateway EtherCAT Slave to Lonworks Slave enables you to connect any EtherCAT system to any Lonworks control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects serial devices to PROFINET-IRT control systems.
The Anybus Communicator – Serial Master to PROFINET-IRT converts serial protocols to PROFINET-IRT, enabling you to connect any RS-232/485 device or equipment to PROFINET-IRT control systems. Anybus Communicators ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
The Ixxat SG-gateway is used to integrate various industrial and energy-related devices into SCADA or cloud systems. It enables secure and reliable communication between energy systems, control rooms and industrial automation systems.
BACnet/IP & MS/TP to Modbus TCP & RTU - 250 points
Integrate any BACnet MS/TP or BACnet/IP server device with a Modbus BMS or any Modbus TCP or RTU controller. This integration aims to make BACnet objects, data, and resources accessible from a Modbus-based control system or device as if they were a part of the Modbus system and vice versa.
Replaced by: IN7004851K20000
Designed for the integration of any Modbus RTU or TCP server device, or both simultaneously, with a BACnet BMS or any BACnet/IP or BACnet MS/TP controller. This integration aims to make Modbus signals and resources accessible from a BACnet-based control system or device as if they were a part of the BACnet system and vice versa. Please refer to the new product reference for further details.
A protocol converter that connects Modbus TCP devices to Modbus TCP PLCs
The Anybus X-gateway Modbus TCP Client to Modbus TCP Server enables you to connect any Modbus TCP device or equipment to Modbus TCP control systems. It can be used when there is no existing Modbus TCP control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects Ethernet and PROFIBUS DP control systems
The Anybus Communicator Ethernet to PROFIBUS DP device ATEX enables you to connect any Ethernet control system to any PROFIBUS DP control system. Anybus Communicators ensure reliable, secure, high-speed data transfers between different industrial networks. Thanks to our intuitive web-based user interface, they're also incredibly easy to use.
M-BUS to Modbus TCP & RTU - 60 devices
Integrate any M-Bus device with a Modbus BMS or any Modbus TCP or Modbus RTU controller. This integration aims to make M-Bus devices, their registers, and resources accessible from a Modbus-based control system or device as if they were a part of the Modbus system and vice versa.
A protocol converter that connects Modbus TCP devices to EtherCAT control systems
The Anybus Communicator Modbus TCP Client to EtherCAT enables you to connect Modbus TCP devices to EtherCAT control systems. Anybus Communicators ensure reliable, secure, and high-speed data transfer between different industrial networks. Thanks to our intuitive web-based user interface, they're also incredibly easy to use.
A protocol converter that connects devices to Industrial Ethernet control systems
The Anybus Communicator Common Ethernet to Common Ethernet enables you to connect any device or equipment to PROFINET, EtherCAT, EtherNet/IP, and Modbus TCP control systems. Anybus Communicators ensure reliable, secure, and high-speed data transfers. The intuitive user interface makes them incredibly easy to use.
Replaced by: IN7004852500000
Designed for the integration of any Modbus RTU or TCP server device, or both simultaneously, with a BACnet BMS or any BACnet/IP or BACnet MS/TP controller. This integration aims to make Modbus signals and resources accessible from a BACnet-based control system or device as if they were a part of the BACnet system and vice versa. Please refer to the new product reference for further details.
A protocol converter that connects CC-Link IE Field and POWERLINK control systems
The Anybus X-gateway CC-Link IE Field Slave to POWERLINK Device enables you to connect any CC-Link IE Field control system to any POWERLINK control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects PROFIBUS and PROFINET-IRT FO control systems
The Anybus X-gateway PROFIBUS Slave to PROFINET-IRT FO Device enables you to connect any PROFIBUS system to any PROFINET-IRT FO control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects EtherNet/IP and PROFINET-IRT control systems
The Anybus X-gateway EtherNet/IP Adapter to PROFINET-IRT Device enables you to connect any EtherNet/IP system to any PROFINET-IRT control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
LonWorks TP/FT-10 to BACnet/IP & MS/TP - 100 points
Integrate any LON device or installation with a BACnet BMS or any BACnet/IP or BACnet MS/TP controller. This integration aims to make LON devices, their network variables (SNVT), and resources accessible from a BACnet-based control system or device as if they were a part of the BACnet system and vice versa.
A protocol converter that connects PROFIBUS devices to EtherNet/IP PLCs
The Anybus X-gateway PROFIBUS Master to EtherNet/IP Adapter enables you to connect any PROFIBUS device or equipment to EtherNet/IP control systems. It can be used when there is no existing PROFIBUS control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects PROFIBUS and J1939 control systems
The Anybus X-gateway PROFIBUS Slave to J1939 enables you to connect any PROFIBUS system to any J1939 control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects PROFIBUS devices to EtherCAT PLCs
The Anybus X-gateway PROFIBUS Master to EtherCAT Slave enables you to connect any PROFIBUS device or equipment to EtherCAT control systems. It can be used when there is no existing PROFIBUS control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects CC-Link and OPC UA-MQTT control systems
The Anybus X-gateway CC-Link Slave to OPC UA-MQTT enables you to connect any CC-Link system to any OPC UA-MQTT control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
Modbus TCP & RTU to KNX - 3000 points
Integrate any Modbus RTU or TCP server device, or both simultaneously, with any KNX device or system. This integration aims to make Modbus register data and resources accessible from a KNX system as if they were a part of the KNX system and vice versa.
(product was not in this initial legacy product list)
A protocol converter that connects CAN devices to CC-Link control systems.
The Anybus Communicator – CAN to CC-Link converts CAN protocols to CC-Link, enabling you to connect any CAN-based device or equipment to CC-Link control systems. Anybus Communicators ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects ControlNet and EtherCAT control systems
The Anybus X-gateway ControlNet Adapter to EtherCAT Slave enables you to connect any ControlNet control system to any EtherCAT control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects AS-Interface devices to FIPIO PLCs
The Anybus X-gateway AS-Interface Master to FIPIO Slave enables you to connect any AS-Interface device or equipment to FIPIO control systems. It can be used when there is no existing AS-Interface control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects CANopen devices to PROFIBUS PLCs
The Anybus X-gateway CANopen Master to PROFIBUS Slave enables you to connect any CANopen Master device or equipment to PROFIBUS control systems. It can be used when there is no existing CANopen control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
A protocol converter that connects CANopen and POWERLINK control systems
The Anybus X-gateway CANopen Slave to POWERLINK Device enables you to connect any Modbus RTU system to any POWERLINK control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.
Content of Delivery
1 SI CANopen module, user manual, available as download: Anybus Configuration Manager - CANopen, function blocks, configuration files
Net Width (mm)
15 mm
Net Height (mm)
81 mm
Net Depth (mm)
52 mm
Net Weight (g)
33 g
Mounting
DIN rail mount (bracket included)
Current Consumption Type Value at Vcc Nom (mA)
33 mA (24 V DC)
Input Voltage (V)
24 V DC +20/-15%
Isolation
Galvanic isolation on sub-network interface
Operating Temperature °C Min
0 °C
Operating Temperature °C Max
60 °C
Storage Temperature °C Min
-40 °C
Storage Temperature °C Max
70 °C
Relative Humidity
5 to 95 %, non-condensing
Housing Materials
Plastic
Packaging Material
Cardboard
Configuration
The Ixxat 1 SI CANopen module is integrated into the SIMATIC STEP 7 or TIA Portal and offers easy network configuration thorugh the Anybus Configuration Manager - CANopen tool. The configuration can be uploaded and stored in the PROFIBUS or PROFINET PLC or the ET200S I/O system CPU, with the option to hot-swap 1 SI CANopen modules while the ET200S is powered.
CE
Yes
UL
Yes
WEEE Category
IT and telecommunications equipment
ETIM Classification
EC001604
Protection Class IP
IP20

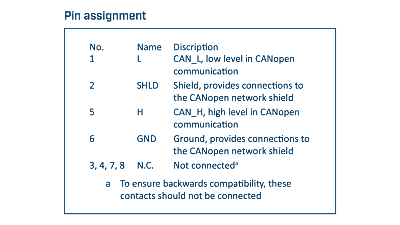

Connectors / Input / Output
plug-in module
Contains Battery
No
Brand
Ixxat
Country of Origin
Sweden
HS Code
8517620000
Dual Usage
No
Export Control Classification Number (ECCN)
EAR99
Item Number
020570-B
CAN Mode
Transparent CAN 2.0A mode
CAN Baud Rate
20 kBit/s to 1 Mbit/s
CANopen Supported Functionality
Connects max. 126 CANopen responder nodes per module in commander mode
