Mitsubishi Electric Compatibilities

03 May 2023

This document describes the different steps on checking the compatibility with Intesis AC Interfaces.



APPLICABLE PRODUCTS

  • Mitsubishi Electric & Universal AC Interfaces: (IN770AIR00SO000, IN770AIR00MO000, IN485MIT001I000, INWMPMIT001I000, INKNXMIT001I000, INKNXMIT001I100, INMBSMIT001I000, INWFIUNI001I000, IN485UNI001I100, INWMPUNI001I000, INKNXUNI001I000).



PRE-REQUISITES

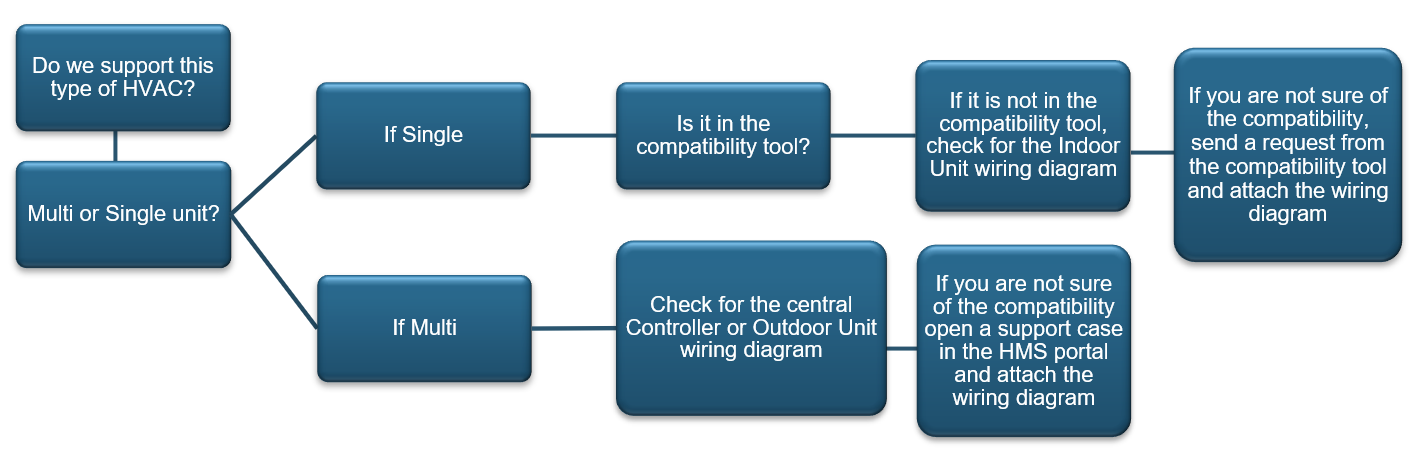

Considerations before reviewing a compatibility.




IN THIS ARTICLE

There are 2 main categories of gateways: One-to-One and Multi-Unit.

The One-to-One category is divided into 3 subcategories depending on the type of gateway: Universal IR, AC Connector and RC Connector. For this solution we have Universal IR and AC Connector available.



One-to-One

These gateways communicate with a single Indoor Unit and offer individual control points for the most relevant variables (on/off, setpoint, mode, fan speed, etc.).



Within this category there are 2 different types of Mitsubishi Electric gateways:

  • Universal IR.
  • AC Connector.



When checking a compatibility consider:

  • Supported: Splits, Cassettes, Ducted and families Mr. Slim & City Multi.
  • Not supported: Lossnay, Outdoor-Air Processing Units, Air to Water Booster Units, Air to Water HEX Units, Heat Pump and Outdoor Units.

  • If the Indoor Unit is compatible, the MELCloud Wi-Fi accessory we are compatible, but you cannot connect both at the same time.

  • Connectors CN51 + CN100 (with optional PAC-IT51AD-E adaptor).

  • Connectors CN52 + CN100 (with optional PAC-IT52AD-E adaptor).

  • Accessories: PAR-SA9FA-E, PAR-FA32MA, IR Kit receiver.

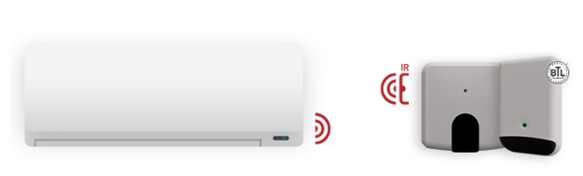

Universal IR

The Universal IR communicates via the Infrared receiver of the Indoor Unit

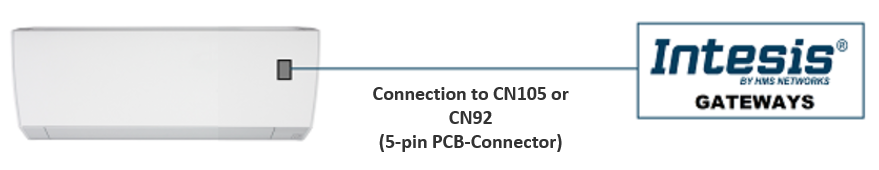

AC Connector
These gateways are connected to the Indoor Unit via a specific connector (CN92 or CN105) on the PCB.

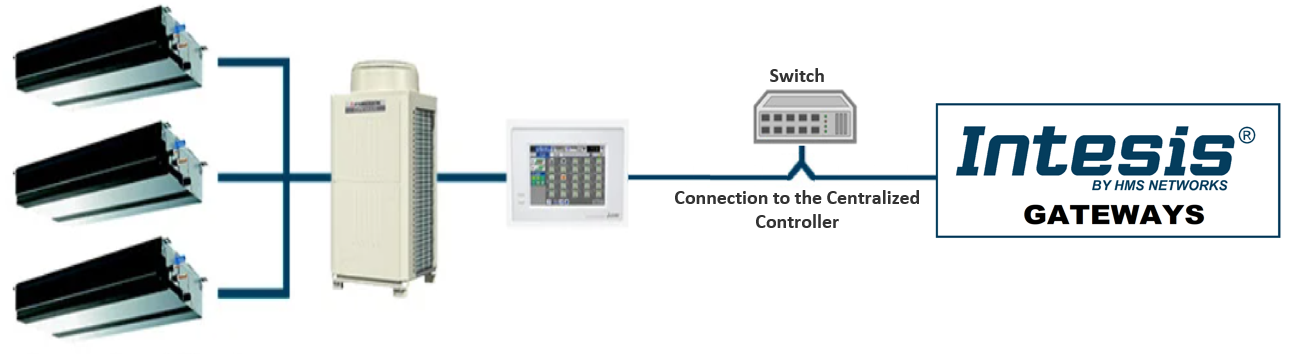

Multi-Unit

These gateways are connected to the Central Controller via Ethernet providing individual control points for the most relevant variables (on/off, setpoint, mode, fan speed, etc.) and signals from the Outdoor Units. These gateways use Intesis MAPS as Configuration Tool.



When checking a compatibility consider:

  • Indoor Units cannot be connected directly to the gateways..
  • Compatible with Central controllers: AG-150A, GB-50ADA or older, EB-50GU, AE-200, EW-50 or newer.

  • Not compatible with Central Controller without ethernet port.





ADDITIONAL INFO

To know more about how to user our AC Compatibility tool, check our Website

To know more about how to use our Intesis MAPS, check our Intesis MAPS eLearning
