Panasonic Compatibilities

03 May 2023

This document describes the different steps on checking the compatibility with Intesis AC Interfaces.



APPLICABLE PRODUCTS

  • Panasonic & Universal AC Interfaces: (INKNXPAN001A000, INMBSPAN001A000, INWFIPAN001R100, INBACPAN001R000, INBACPAN001R100, INWMPPAN001R000, INKNXPAN001R000, INMBSPAN001R000, IN770AIR00SO000, IN770AIR00MO000, IN771AIR00LO000, INWFIPAN001I000, INBACPAN001I000, IN485PAN001I000, INWMPPAN001I000, INKNXPAN001I000, INMBSPAN001I100, INWFIUNI001I000, IN485UNI001I100, INWMPUNI001I000, INKNXUNI001I000).



PRE-REQUISITES

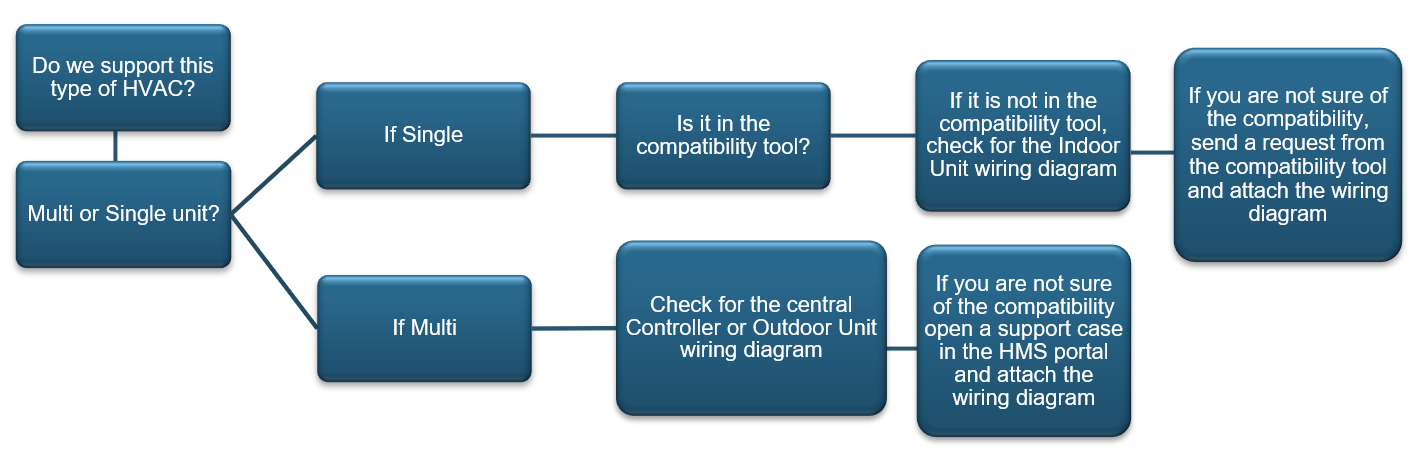

Considerations before reviewing a compatibility.




IN THIS ARTICLE

There are 2 main categories of gateways: One-to-One and Multi-Unit.

The One-to-One category is divided into 3 subcategories depending on the type of gateway: Universal IR, AC Connector and RC Connector.



PLEASE NOTE: A special type of air-water gateway is available for Panasonic.



One-to-One

These gateways communicate with a single Indoor Unit and offer individual control points for the most relevant variables (on/off, setpoint, mode, fan speed, etc.).



Within this category there are 4 different types of Panasonic gateways:

  • Universal IR.
  • AC Connector.
  • RC Connector.
  • Air-to-Water.



When checking a compatibility consider:

  • Supported: Panasonic families Aquarea H, Aquarea J, Etherea ECOi, ECOiEX PACi and Indoor Units models: Cassettes, Ducted, Wall mount, Floor ceilling.

  • Not supported: Chiller and Outdoor Units.

  • The CZ-RTC5B wired remote control is not compatible with Intesis gateways due to its power consumption.

  • Accesories: IR Kit receiver (CZ-RWSU3).

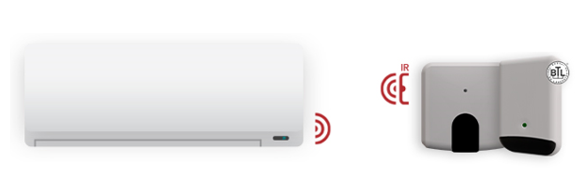

Universal IR

The Universal IR communicates via the Infrared receiver of the Indoor Unit

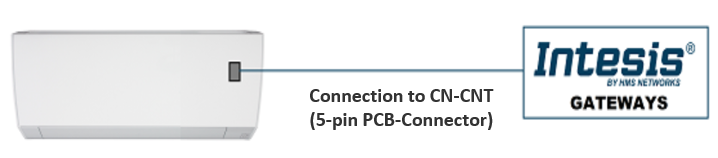

AC Connector
These gateways are connected to the Indoor Unit via a specific connector (CN-CNT) on the PCB.

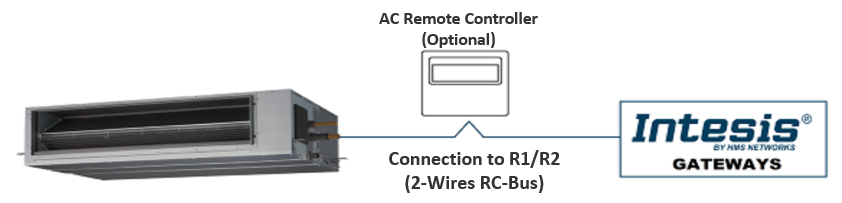

RC Connector

These gateways are connected to the Indoor Unit using the Indoor Unit's remote control bus (R1/R2), which is the same bus used by the wired remote control of the Indoor Unit itself.

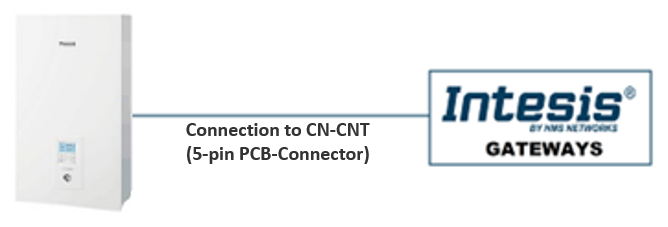

Air-to-Water

These gateways are connected to the Indoor Unit via a specific connector (CN-CNT) on the PCB.

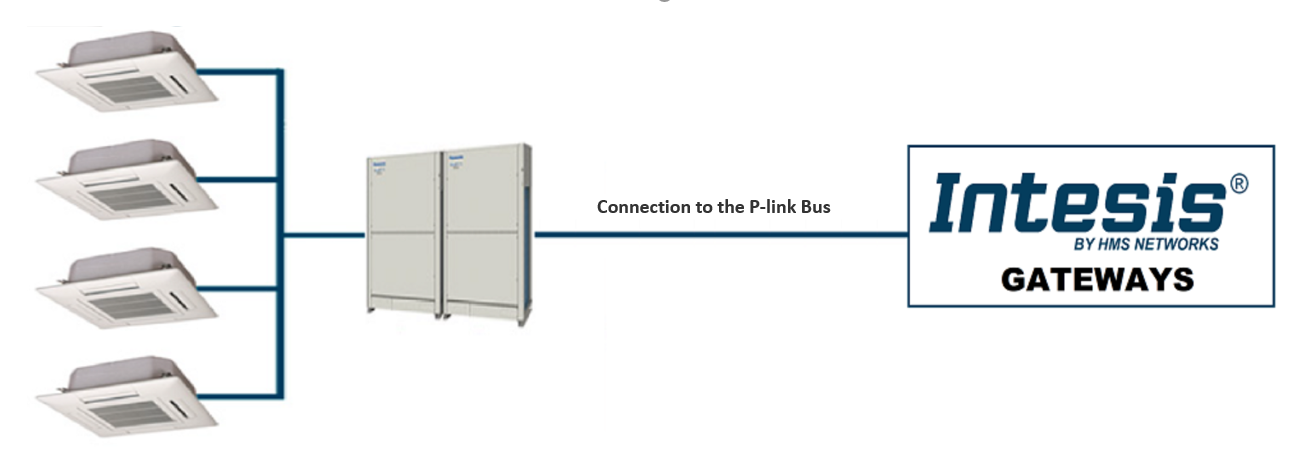

Multi-Unit

These gateways have direct access to the Outdoor Unit communication bus (P-Link) providing individual control points for the most relevant variables (on/off, setpoint, mode, fan speed, etc.) and signals from the Outdoor Units. These gateways use Intesis MAPS as Configuration Tool.



When checking a compatibility consider:

  • Indoor Units cannot be connected directly to the gateways.

  • Compatible with Panasonic ECOi, ECOg and PACi Outdoor Unit models.



ADDITIONAL INFO

To know more about how to user our AC Compatibility tool, check our Website

To know more about how to use our Intesis MAPS, check our Intesis MAPS eLearning
