Configure up to 6 KPIs visible in M2web and eCatcher Mobile using an Ewon Flexy.
APPLICABLE PRODUCTS
Ewon Flexy, M2Web, eCatcher Mobile
PRE-REQUISITES
Flexy connected to Talk2m with configured tags.
Information on tag setup can be found here
IN THIS ARTICLE
Enable Data Management
In the web interface of the Flexy go to Setup>Main>Data Management then check the “Live data and KPI’s” box and press "update" at the bottom of the page.
Enable KPI on Tag

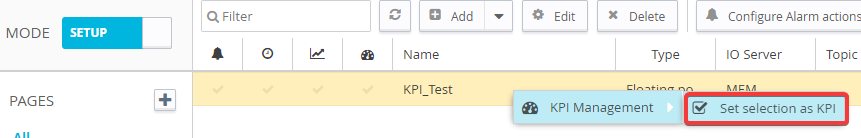

Go to the Values tab. In setup mode right click on a tag, then select "Set selection as KPI".
This can be done for up to 6 tags.

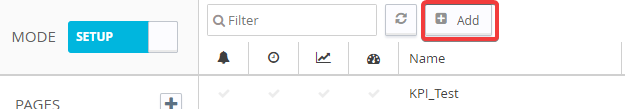

If a tag has not been created yet press the "add" button to create a new tag.

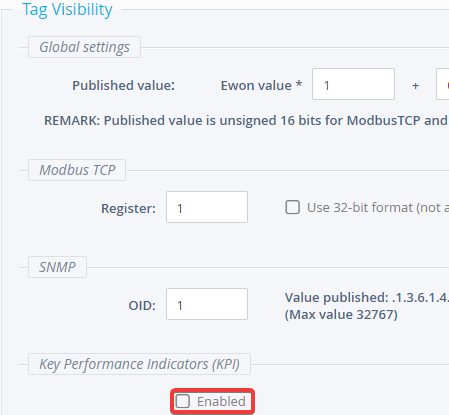

In the create new tag page that shows up, after filling the tag info in, scroll to the "Tag visibility" section and check the box to enable KPI. When done press the “Add Tag” button.

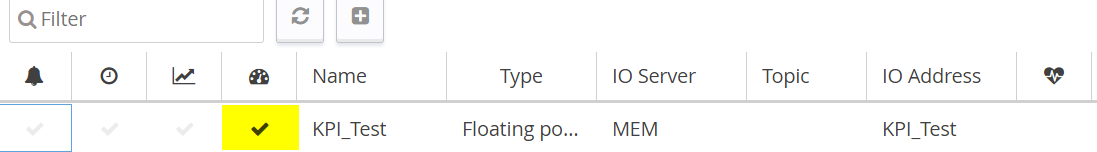

If done correctly the KPI section will have a check mark next to the tag
Check KPI is Active
Log into the Talk2m account using M2Web

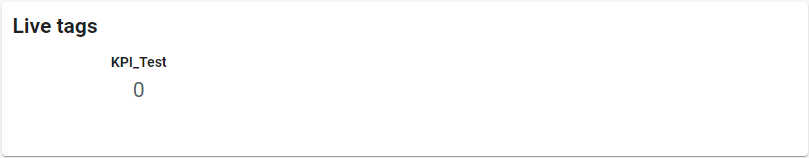

Select the flexy in the account. A section called "Live tags" will have all KPIs for the Flexy. In this example the tag KPI_Test currently has a value of 0.
ADDITIONAL INFO
Blog post and video written by Ewon.
