Daikin Compatibilities

07 Jul 2022

This document describes the different steps on checking the compatibility with Intesis AC Interfaces.



APPLICABLE PRODUCTS

  • Daikin & Universal AC Interfaces: (INWFIDAI001I000, INBACDAI001I000, IN485DAI001I000, INWMPDAI001I000, INKNXDAI001I000, INKNXDAI001I100, INMBSDAI001I000, INWFIDAI001R100, INBACDAI001R000, IN485DAI001R000, INWMPDAI001R000, INKNXDAI001R000, INKNXDAI001R100, INMBSDAI001R000, INWFIUNI001I000, IN485UNI001I100, INWMPUNI001I000, INKNXUNI001I000).



PRE-REQUISITES

Considerations before reviewing a compatibility.




IN THIS ARTICLE

There are 2 main categories of gateways: One-to-One and Multi-Unit.

The One-to-One category is divided into 3 subcategories depending on the type of gateway: Universal IR, AC Connector and RC Connector.



One to one

These gateways communicate with a single Indoor Unit and offer individual control points for the most relevant variables (on/off, setpoint, mode, fan speed, etc.).



Within this category there are 3 different types of Daikin gateways:

  • Universal IR.
  • AC Connector.
  • RC Connector.

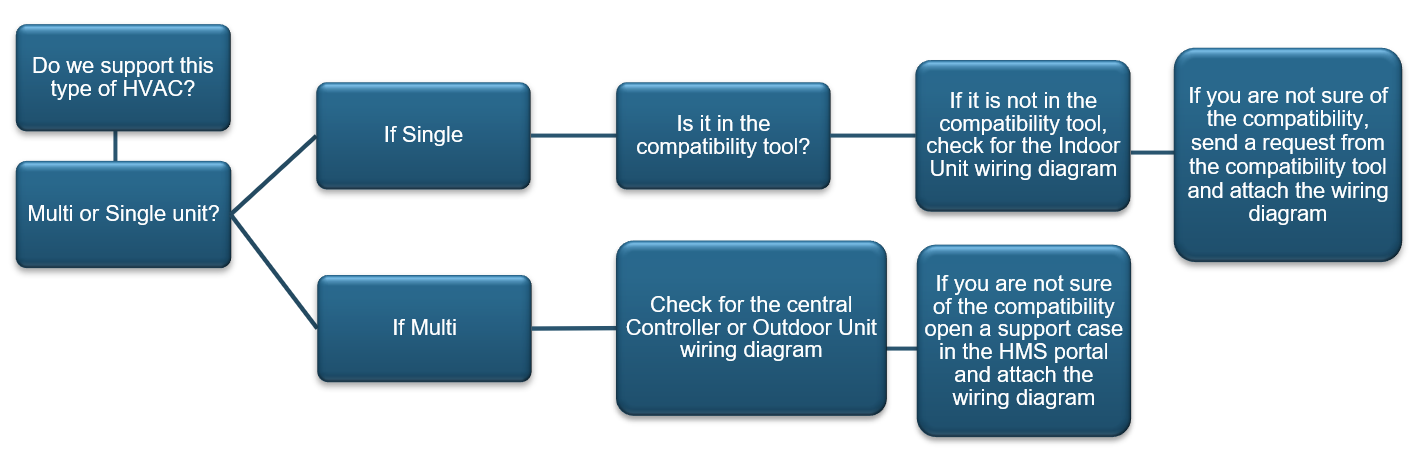

When checking a compatibility consider:

  • Supported: Cassettes, Duct, Floor standing Units, Wall mount, Air curtain, VRV Fan Coil units, SKY-AIR LINE (COMMERCIAL) and VRV LINE (LARGE COMMERCIAL).
  • Not supported: Air to water, AHU, Heat exchange systems and Outdoor Units.
  • Accesories: IR Kit receiver.



Universal IR

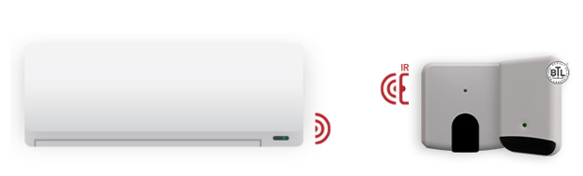

The Universal IR communicates via the Infrared receiver of the Indoor Unit



AC Connector

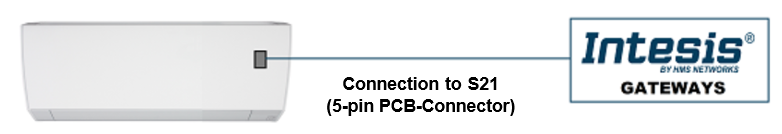

These gateways are connected to the Indoor Unit via a specific connector (S21) on the PCB.





RC Connector

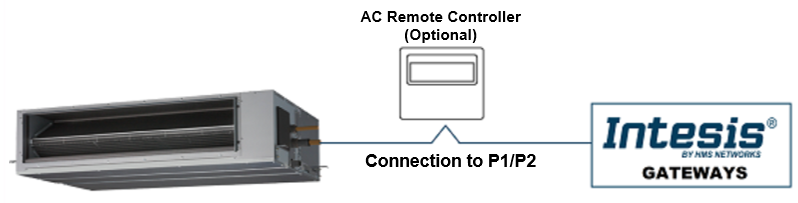

These gateways are connected to the Indoor Unit using the Indoor Unit's remote control bus (P1/P2), which is the same bus used by the wired remote control of the Indoor Unit itself.




ADDITIONAL INFO

To know more about how to user our AC Compatibility tool, check our Website
