HMS successfully addressed and solved CAN bus communication issues in a multi-megawatt BESS project using remote diagnostics and intelligent CAN bus segmentation, ensuring efficient and reliable communication for large-scale BESS applications.
A battery energy storage system (BESS), usually based on electrochemistry, is designed to store electric charge by using specially developed batteries, so that the stored energy can be utilised later. Battery advances have now shaped BESS into a commercial reality.
While costs are still high compared to grid electricity, the cost of energy storage has been plummeting. There has been a 50% decrease in the cost of energy storage over the last two years. Many governments and utility regulators are actively encouraging the development of battery storage systems with financial incentives, which is likely to lead to further growth.
A BESS integrates a variety of disparate devices or subsystems within a single application – from batteries used in the automotive sector to air conditioning, ventilation and fire alarm systems from the building sector and controls from the industrial environment. These subsystems are networked together using a multitude of different protocols.
While these components and subsystems are often an ideal fit for the intended application, communicating with them can be challenging when the interface options are limited interface or non-existent. However, a majority of systems will offer at least a serial or CAN-based RS232/485 interface.
Because of their roots in the automotive segment, the battery packs utilised in BESS will often provide a CAN bus communication interface. CAN (Controller Area Network) is a bus-based system in which all nodes are connected in parallel to a bus consisting of two wires, terminated at both ends with a resistor.
During the early-stage commissioning of one such multi-megawatt BESS project, site technicians identified CAN bus communication issues at the battery rack level. This particular system networked multiple rack-level BMUs with a centralised “master” BMU utilising CAN in order to facilitate a cost-effective large-scale deployment.
In a CAN network, specific design and installation requirements must be met to maintain reliability and overall communication stability. These include the network length and topology, as well as the cabling itself and the terminations. Because it is necessary that an equal signal level is present at all nodes within a defined bit time, the total network length is limited.
The company contacted HMS Industrial Networks to request assistance to troubleshoot and resolve the CAN bus communication issue and achieve communications stability. Under its Ixxat brand, HMS offers communication expertise for a wide range of users, including those in the energy and automotive industries. HMS was able to effectively analyse and troubleshoot the existing system remotely and recommend multiple approaches towards a resolution.
HMS’ experience in these situations combined with an extensive toolbox of diagnostic tools and topology components led to a successful resolution for the customer and a successful deployment of another large-scale BESS.
Ixxat provides a range of both standardised and customised software and hardware enable safe and reliable communications based on CAN, CAN FD and Industrial Ethernet, inside industrial automation devices, including battery storage systems, cars and medical equipment. The range includes gateways for smart grid energy systems.

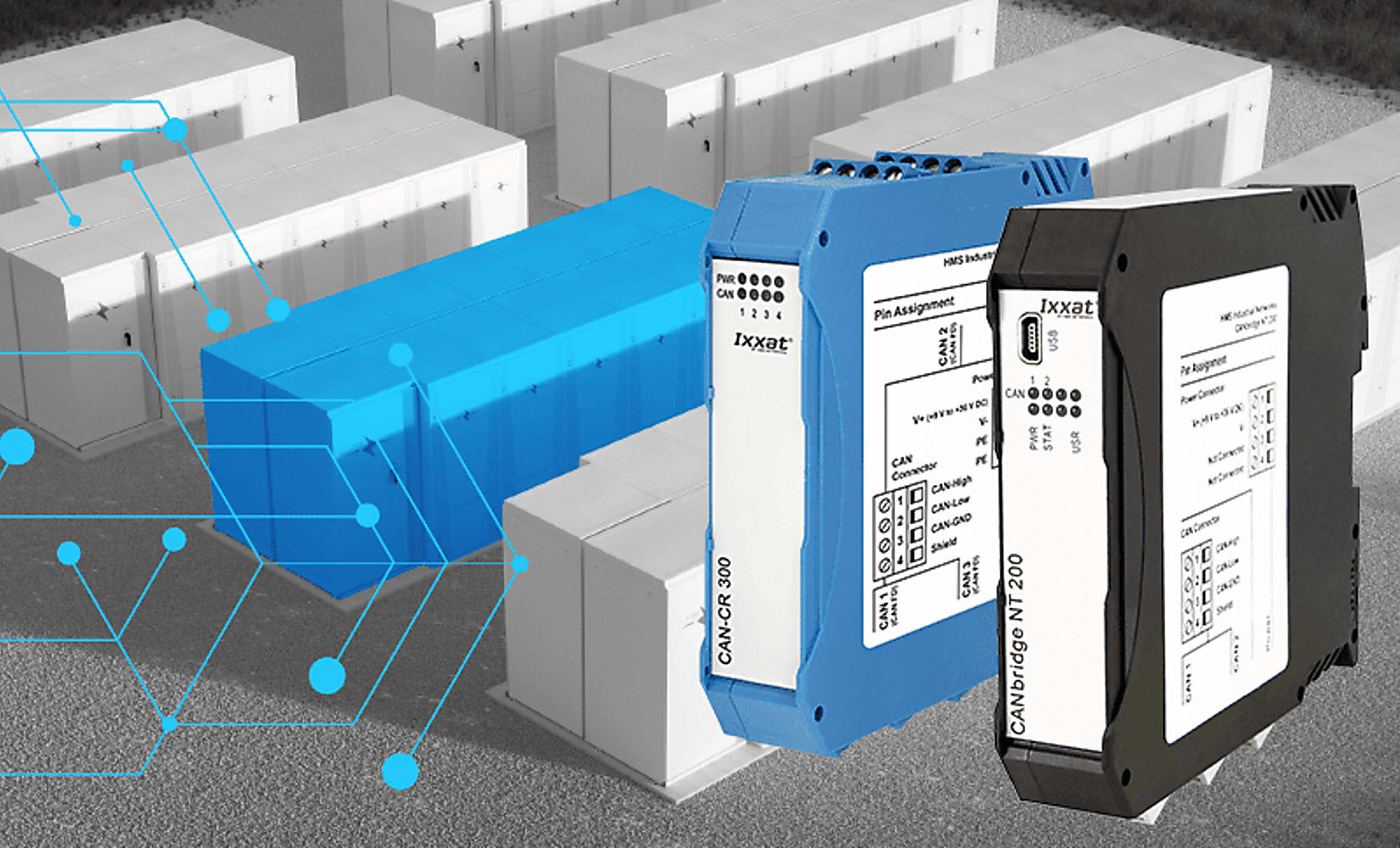

HMS’ Ixxat products for CAN bus communication and device protection.
In this application, HMS used digital tools to enable remote troubleshooting support to a site halfway around the globe. Specific CAN bus analysis tools included CANcheck and USB-to-CAN V2, combined with the CanAnalyzer software interface.
For error analysis of the CAN bus communication, the distant customer carried out signal measurements on the bus and checked the wiring. Working jointly, systemic physical-layer problems were identified early. By analysing the CAN waveforms, it was shown that the network instability was due to excessive capacitive load combined with signal reflections.
Common contributors to such symptoms are
The total physical cabling length of this system was roughly 115 m. Whereas a 500 kbit CAN network typically can achieve lengths of 100-110 m, the underlying issues on this system limited the length even more, before active error frames appeared.
In addition, system rewiring and cable replacement was not possible due to project requirements and physical limitations. The intuitive choice – implementing CAN repeaters to “extend” the network – was also inapplicable for this system: although CAN repeaters do provide bit-wise refreshing of signal levels, their signal propagation delay time effectively only adds length to a line topology network.
So, a different approach was needed!
The HMS team proposed segmenting (sub-dividing) the overall network, using CAN topology components to improve the signal quality of the CAN bus communication.
The larger CAN network was intelligently divided into multiple, shorter segments utilising two-channel CAN bridges, which offer more precise segmentation of the network, with two repeaters for signal refreshing. This allowed each sub-segment to maintain the intended baud rate along with the rest of the overall larger network. In addition, electrical disturbances are also not transmitted across the CAN bridge, further improving the overall signal quality on all segments.
“It just took a few weeks to complete the job from start to finish,” said Thomas Conz, Product Line Director at HMS Networks, based in Ravensburg, Germany.
“We applied our problem solving capabilities and took the customer step-by-step with us to solve the problem remotely. So it took us approximately two weeks to do the investigation phase with the customer, a week to send the device over and another week to check that the solution was working properly. Thereafter, the solution could be mass deployed and our customer was able to make the final buy-off of the system.”
Thomas Conz sees a lot of potential for BESS customers to improve their efficiency in developing, commissioning and deploying their BESS systems onsite. Secure connectivity between batteries and the cloud can help to develop new revenue streams for BESS, including fast-response communication with sources of renewable energy, such as wind turbines.
HMS’ Thomas Conz says the team was able to
quickly resolve the customer’s issues.
Why you should choose HMS Networks as the reliable CAN bus communication solution provider for your BESS:
