A protocol converter that connects serial devices to PROFIBUS control systems
Item number ABC3000-A

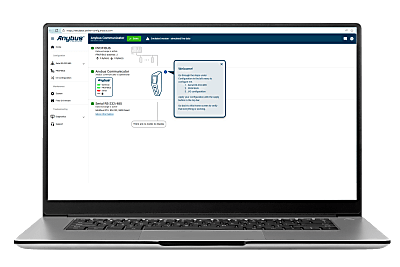

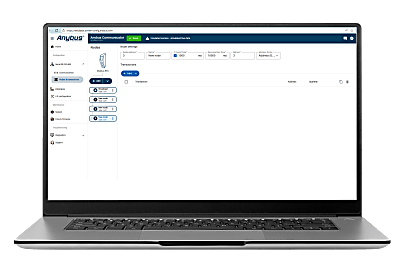

The Anybus Communicator Serial Master to PROFIBUS IO-Device enables you to connect any RS-232/485 device or equipment to PROFIBUS control systems. Anybus Communicators ensure reliable, secure, and high-speed data transfers between different industrial networks. Thanks to our intuitive web-based user interface, they're also incredibly easy to use.
Push Buttons
Factory reset
Connectors / Input / Output
1x 7-pin, 5.08 Phoenix plug connector, 1x D-sub 9-pin female PROFIBUS connector, RJ45 Config port
Contains Battery
No
CE
Yes
UL
Yes
UL Information
E214107: Ord.Loc UL 61010-1, CSA C22.2 No. 61010-1, UL 61010-2-201, CSA C22.2 No. 61010-2-201
ATEX
No
KC
Yes
EMC
Yes
Environment
EN 55016-2-3 Class A, EN 55032 Class A, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
Waste Certification (WEEE)
Yes
WEEE Category
IT and telecommunications equipment
Protection Class IP
IP20
Predecessor
AB7000-C, AB7000-C-5PACK
Item Number
ABC3000-A
Export Control Classification Number (ECCN)
5A991.b.1
Dual Usage
No
Country of Origin
Sweden
Brand
Anybus
HS Code
8517620000
Model Code
40-SER-PDP-A
Net Width (mm)
27 mm
Net Height (mm)
144 mm
Net Depth (mm)
98 mm
Net Weight (g)
150 g
Mounting
DIN-rail (EN 50022 standard)
Current Consumption Type Value at Vcc Nom (mA)
90mA @ 24V DC (2.2W)
Current Consumption Max value at Vcc nom (mA)
125mA @24V DC (3W)
Input Voltage (V)
12-30V DC
Power Connector
3-pin, 5.08 Phoenix plug connector
Reverse Polarity Protection
Yes
Short Circuit Protection
Yes
Isolation
TRUE
Operating Temperature °C Min
-25 °C
Operating Temperature °C Max
70 °C
Storage Temperature °C Min
-40 °C
Storage Temperature °C Max
85 °C
Housing Materials
PC ABS, UL 94 VO
Packaging Material
Cardboard
Warranty (years)
5
Packed Weight (g)
185 g
Packed Depth (mm)
115 mm
Packed Height (mm)
170 mm
Packed Width (mm)
35 mm
Modbus-RTU Mode
Client / Master
Modbus-RTU Supported Functionality
RS-232; RS485; Standard Modbus RTU Master; Custom Request / Responce commands; Custom Produce / Consume transactions; Trigger initated transactions; 7 or 8 data bit; None, Odd, Even Parity; 1 or 2 stop bit; Clear/Freeze
Modbus-RTU Baud Rate
1200,1800,2400,4800,7200,9600,14400,19200,35700,38400,57600,115200,128000 bit/s
Modbus-RTU Input Data Size
1500 bytes
Modbus-RTU Output Data Size
1500 bytes
Modbus-RTU Functions Supported
1, 2, 3, 4, 5, 6, 7, 8, 11, 12, 15, 16, 17, 20, 21, 22, 24
Baud Rate
1200,1800,2400,4800,7200,9600,14400,19200,35700,38400,57600,115200,128000 bit/s
Max Stations
31
Connector
1x 7-pin, 5.08 Phoenix plug connector
Max Nodes
31
PROFIBUS Mode
DP Device
PROFIBUS Supported Functionality
PROFIBUS-DP Slave functionality according to extensions of EN 50170
PROFIBUS Baud Rate
9600 bit/s - 12 Mbit/s
PROFIBUS Device Address
0-125
PROFIBUS Input Data Size
244 bytes
PROFIBUS Output Data Size
244 bytes
PROFIBUS Configuration File
GSD available
