Mitsubishi Electric City to Home Automation - Up to 50 groups
Item number IN770AIR00SO000

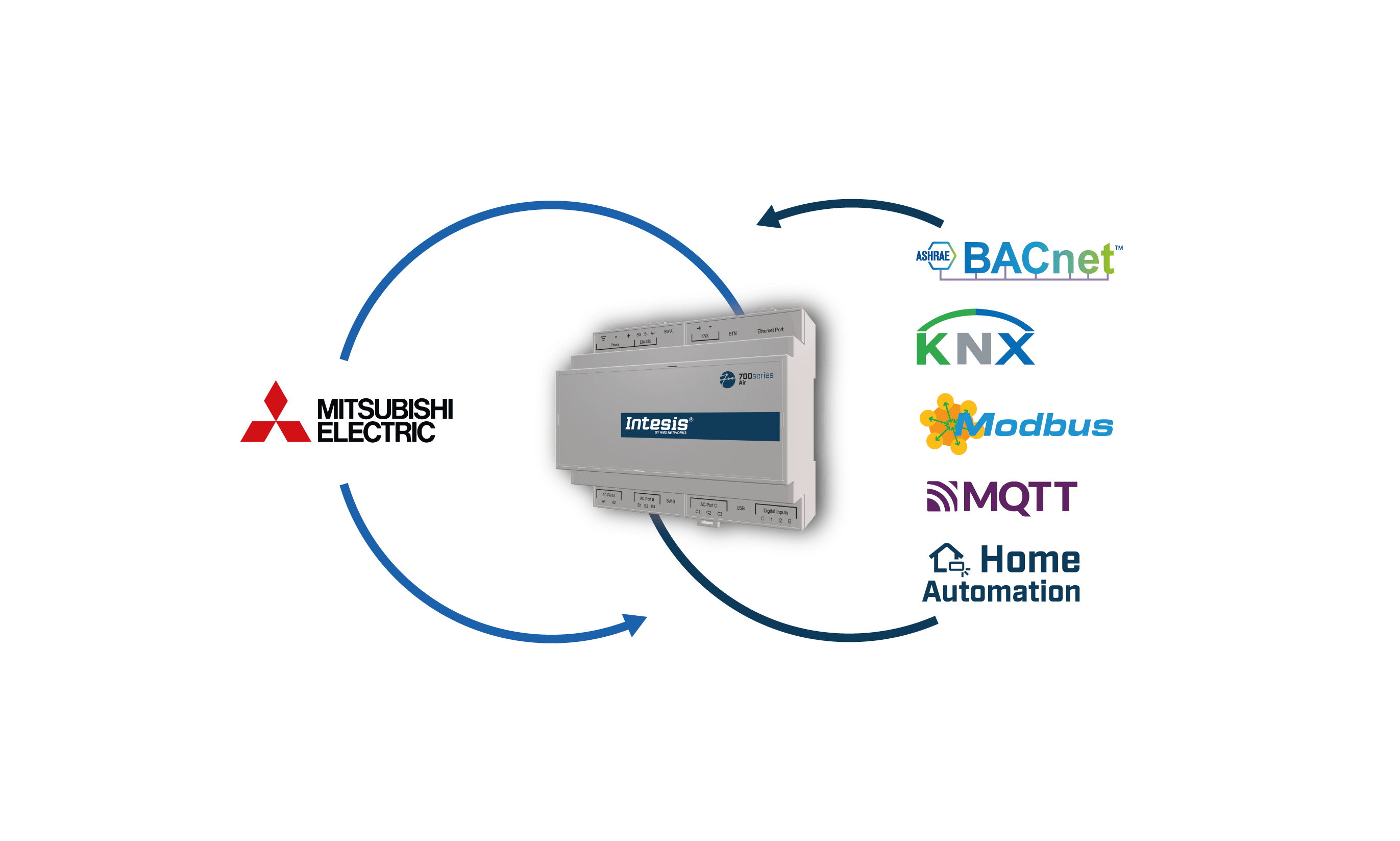

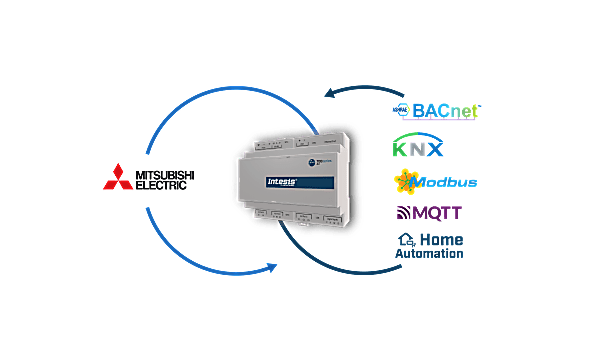

The Mitsubishi Electric application has been specially designed to allow bidirectional control and monitoring of Mitsubishi Electric City Multi systems from a Home Automation system. The solution allows the integration of up to 50 groups from a single interface.
Thanks to our open ASCII protocol integration of any IP Home Automation System is easily achievable.

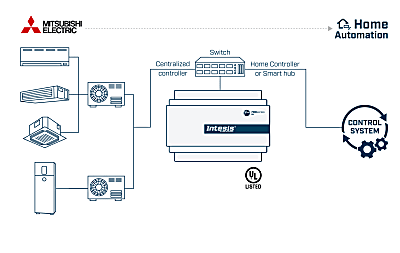

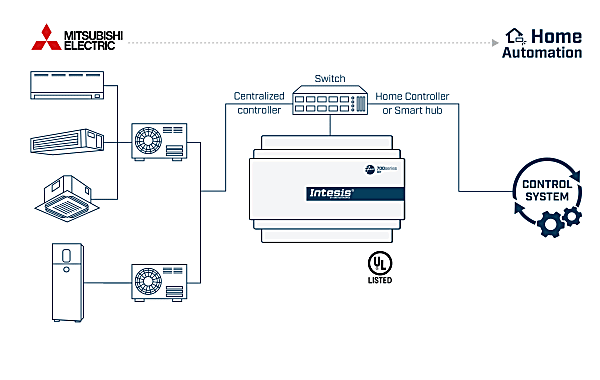

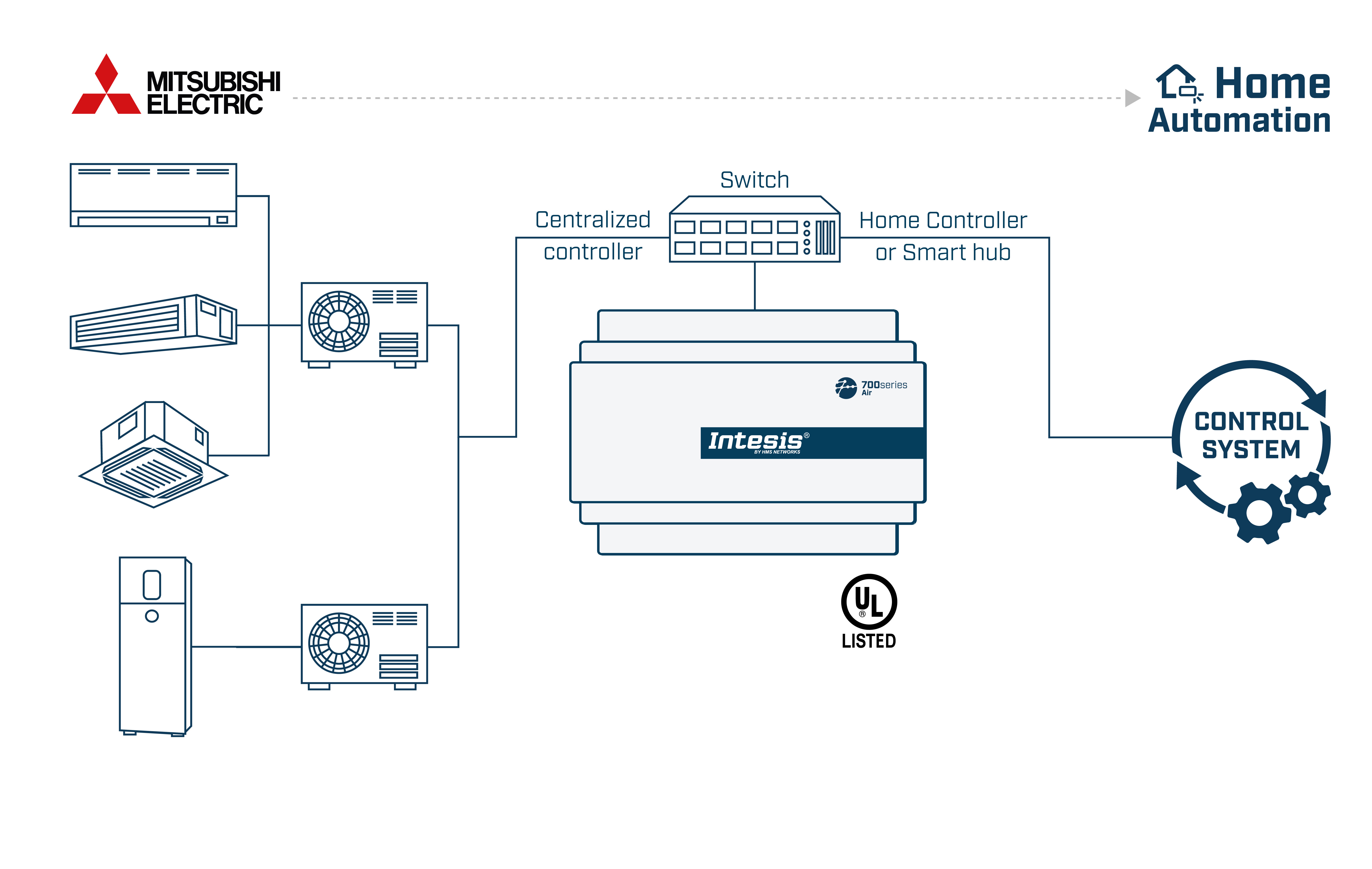

Connection is simple, as the interface connects directly to the outdoor unit’s communication bus.
The interface is directly connected via Ethernet to the home's local IP network,
A scan function is available for automatic identification of the units present in the VRF system.
Signals assigned to the outdoor unit are available to be used in the integration.
The interface supports up to 6 TCP clients (incoming sockets).
A wide range of compatible drivers is available on the Intesis webpage.
Templates can be imported and reused as often as needed, significantly reducing commissioning time.
Take the complexity out of the integration process: Create your project with a predefined template, configure the needed parameters, enable the desired signals, and check the communication between the gateway and the system.
Training from HMS Academy reduces the total cost and time of your project and gives improved quality and efficiency of the solution.
HMS offers trainings related to products, technologies and more. This could be in the form of an onsite training, online training or by running one of our E-learning sessions.
Technical Services from HMS helps customers with any type of assistance needed in addition to the products bought from HMS. The Technical Services page offers a list of all services we provide.
The services are provided by HMS’ global team of skilled and experienced engineers who work together with you, providing various services.
Typical activities are project planning, setting up evaluation demos, creating and validating product configurations, providing guidance during field trials, and more.
