Samsung to Modbus RTU - 1 indoor unit
Item number INMBSSAM001R100

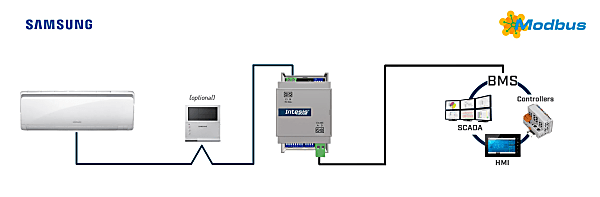

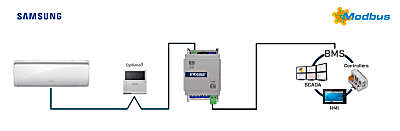

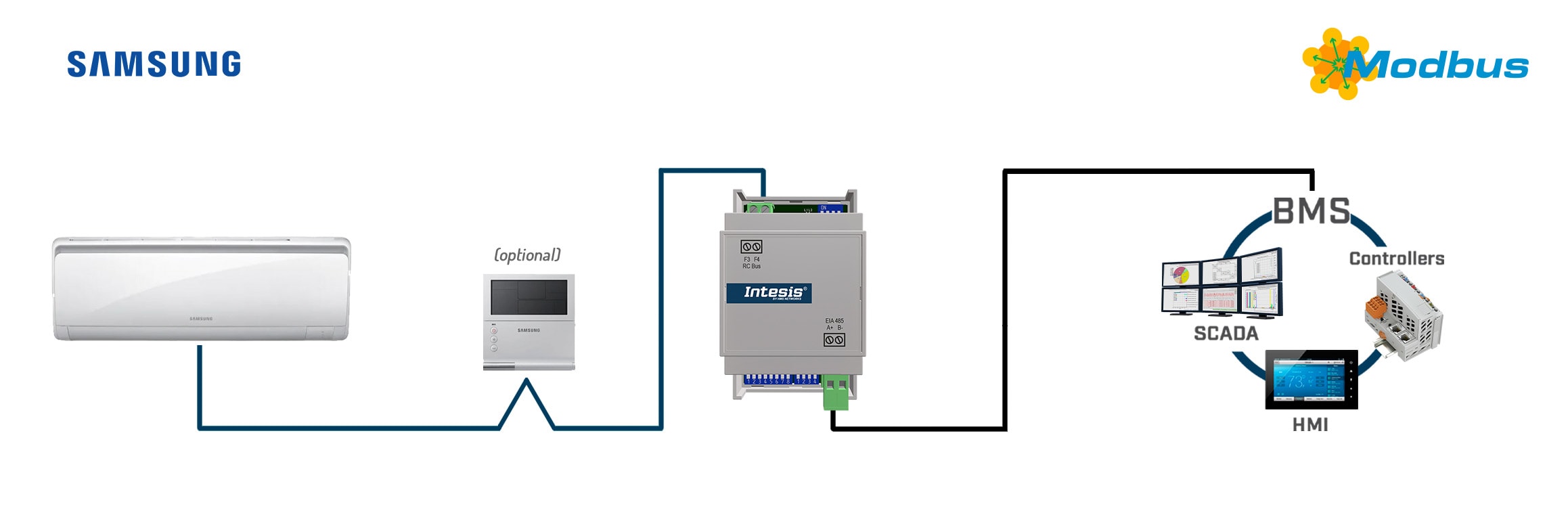

The Samsung-Modbus interface allows full bidirectional communication between Samsung NASA air conditioner units and Modbus RTU (RS-485) networks. The interface acts as a server device for the installation, accessing all signals from the air conditioner unit. A wired remote controller can also be part of the network.
The interface acts as a Modbus server device through its Modbus RTU (EIA-485 connector) port.
Configuration is carried out through the interface's onboard DIP switches and the Modbus interface.
This function helps minimize costs, as HVAC systems are a major building energy consumer.
Through internal variables, running hours counter (for maintenance purposes), and error indication.
The AC unit can be simultaneously controlled by the manufacturer's remote controller and Modbus RTU.
The interface is powered directly from the AC unit, so no external power supply is required.
Mounting options include DIN rail, wall, or, in some AC models, even inside the indoor unit.
The latest Intesis HVAC Compatibility Tool helps find the right gateway to integrate any HVAC system, by simply entering the brand and model. Users can also submit compatibility requests, so the information is updated regularly.
