APPLICABLE PRODUCTS
- Haier & Universal AC Interfaces: (INKNXHAI008C000, INKNXHAI016C000, INKNXHAI064C000, INWFIUNI001I000, IN485UNI001I100, INKNXUNI001I000).

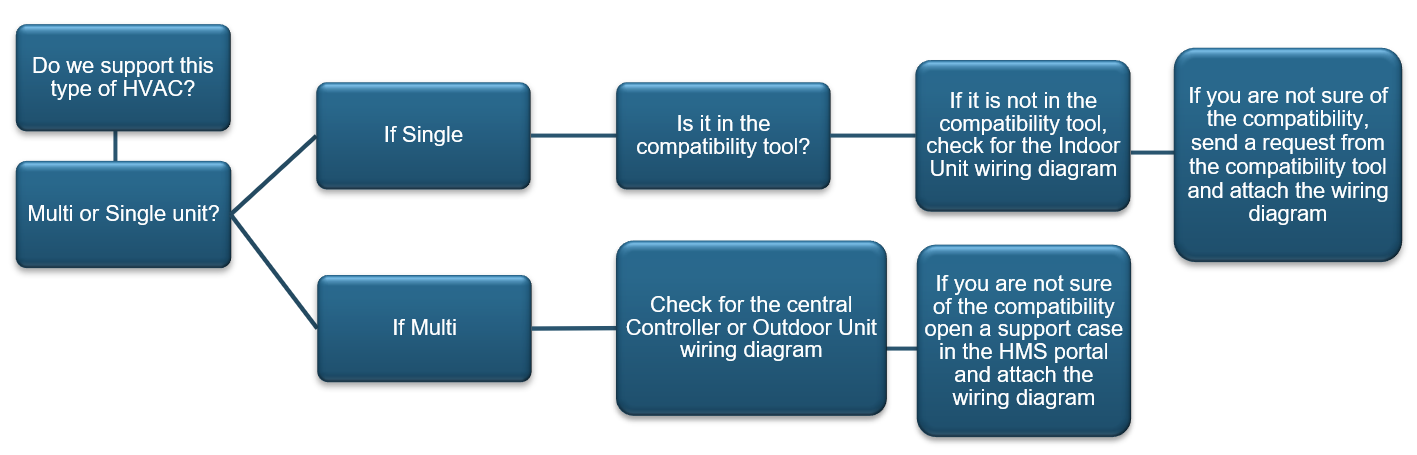

This document describes the different steps on checking the compatibility with Intesis AC Interfaces.
Considerations before reviewing a compatibility.
There are 2 main categories of gateways: One-to-One and Multi-Unit.
The One-to-One category is divided into 3 subcategories depending on the type of gateway: Universal IR, AC Connector and RC Connector. For this solution we have Universal IR available.
One-to-One
These gateways communicate with a single Indoor Unit and offer individual control points for the most relevant variables (on/off, setpoint, mode, fan speed, etc.).
Within this category there is 1 type of Haier gateways:
When checking a compatibility consider:

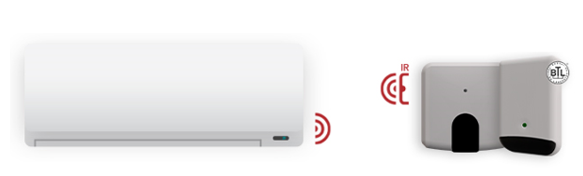

The Universal IR communicates via the Infrared receiver of the Indoor Unit
Multi-Unit

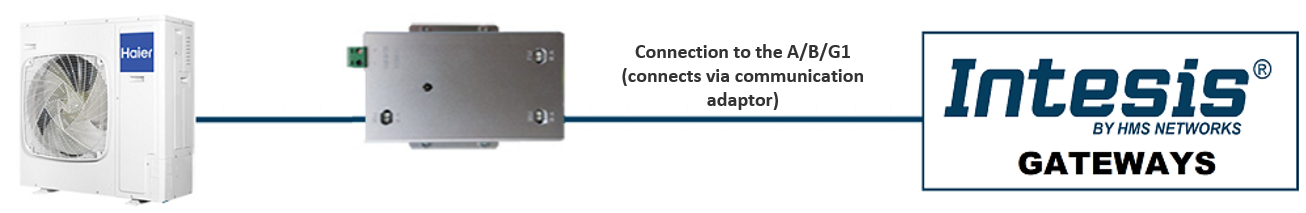

These gateways are connected to an adapter (HA-MA164AD or HA-MB164AD or HA-MC164AD) providing individual control points for the most relevant variables (on/off, setpoint, mode, fan speed, etc.) and signals from the Outdoor Units. These gateways use Intesis MAPS as Configuration Tool.
When checking a compatibility consider:
If the Haier Communication Adaptor does not include a G1 connector, use only 2 wires (AB).
To know more about how to user our AC Compatibility tool, check our Website
To know more about how to use our Intesis MAPS, check our Intesis MAPS eLearning
