APPLICABLE PRODUCTS
- Hitachi & Universal AC Interfaces: (INKNXHIT001A000, INKNXHIT001R000, IN770AIR00SO000, IN770AIR00MO000, INBACHIT001R000, IN485HIT001R000, INMBSHIT001R000, INWFIUNI001I000, IN485UNI001I100, INWMPUNI001I000, INKNXUNI001I000)

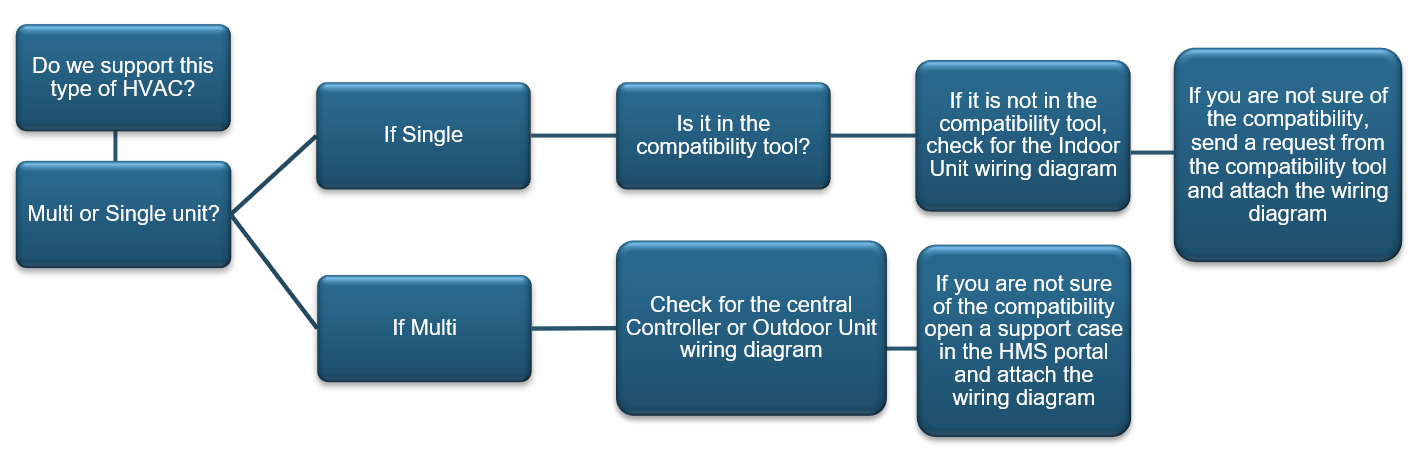

This document describes the different steps on checking the compatibility with Intesis AC Interfaces.
Considerations before reviewing a compatibility.
There are 2 main categories of gateways: One-to-One and Multi-Unit.
The One-to-One category is divided into 3 subcategories depending on the type of gateway: Universal IR, AC Connector and RC Connector. For this solution we have Universal IR and RC Connector available.
PLEASE NOTE: A special type of air-water gateway is available for Hitachi.
One-to-One
These gateways communicate with a single Indoor Unit and offer individual control points for the most relevant variables (on/off, setpoint, mode, fan speed, etc.).
Within this category there are 3 different types of Hitachi gateways:
When checking a compatibility consider:
Not supported: Ventilation Units and Outdoor Units.

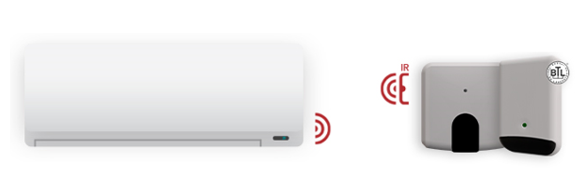

The Universal IR communicates via the Infrared receiver of the Indoor Unit

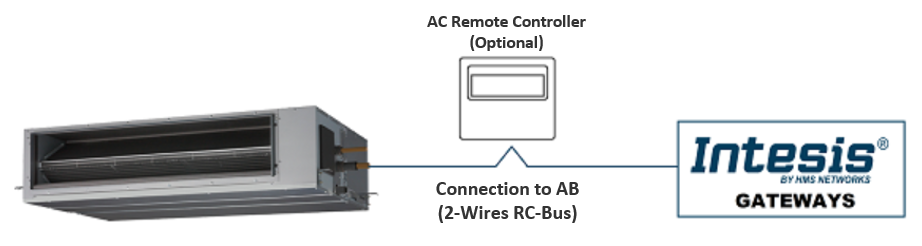

RC Connector
These gateways are connected to the Indoor Unit using the Indoor Unit's remote control bus (AB), which is the same bus used by the wired remote control of the Indoor Unit itself.

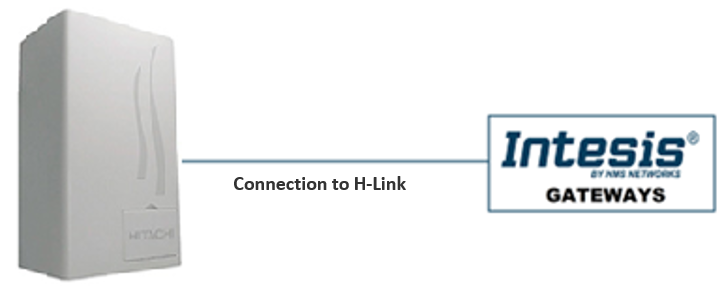

Air-to-Water
These gateways are connected to the Indoor Unit via a specific connector (H-Link) on the PCB.

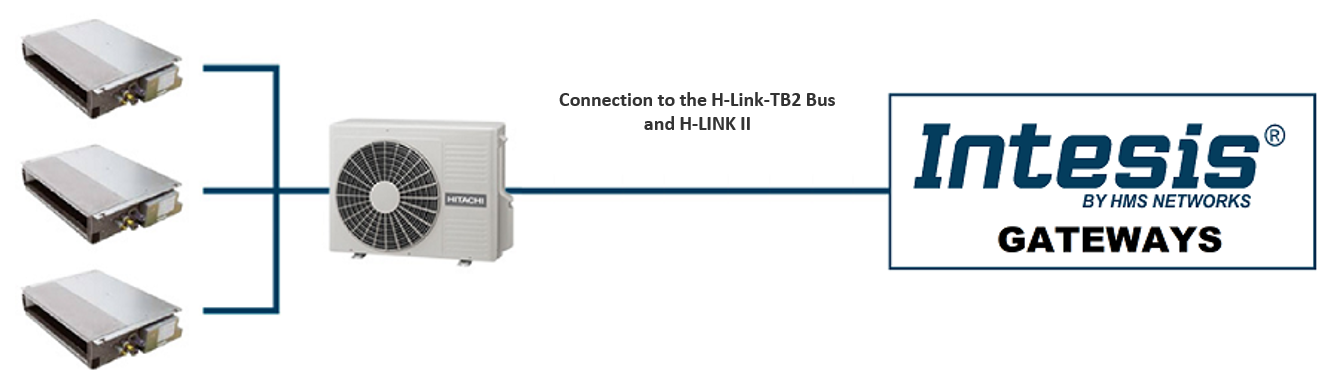

Multi-Unit
These gateways have direct access to the Outdoor Unit communication bus (H-Link and H-Link II) providing individual control points for the most relevant variables (on/off, setpoint, mode, fan speed, etc.) and signals from the Outdoor Units. These gateways use Intesis MAPS as Configuration Tool.
When checking a compatibility consider:
Not compatible with AHU, Ventilation Units, Heat exchange systems.
To know more about how to user our AC Compatibility tool, check our Website
To know more about how to use our Intesis MAPS, check our Intesis MAPS eLearning
