How to transfer KNX Group addresses from MAPS to ETS

05 Feb 2024

This article will show you how to export the Group addresses from an Intesis MAPS Project to then Import them on ETS.

APPLICABLE PRODUCTS

All Intesis KNX Gateways that are configured via MAPS

PRE-REQUISITES

Intesis MAPS

ETS

IN THIS ARTICLE

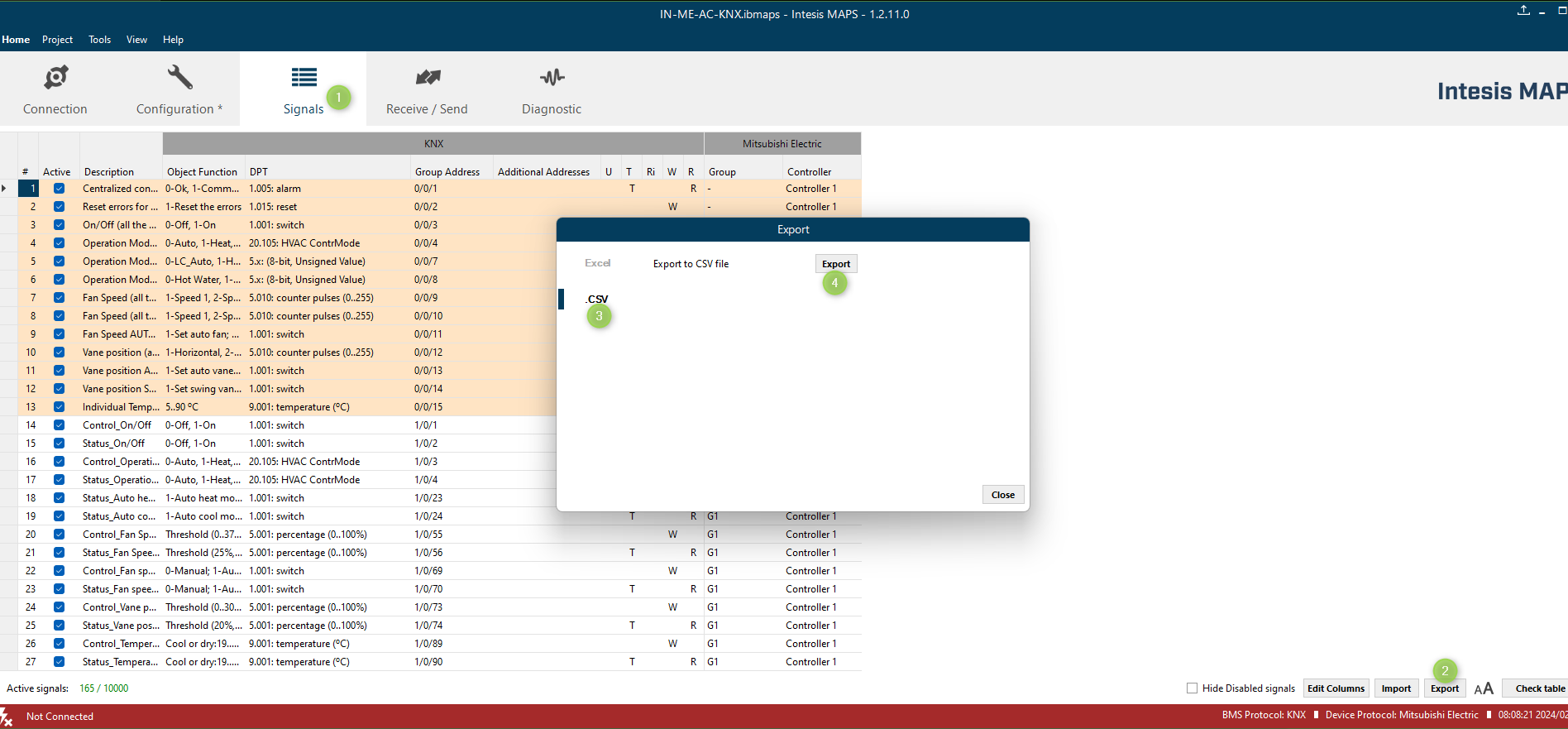

Open your MAPS configuration and go to the Signals TAB (1) then select Export on the bottom right (2) select .CSV (3) and Press export (4). In the follow-up Window select the folder and set a name for the exported .CSV file.

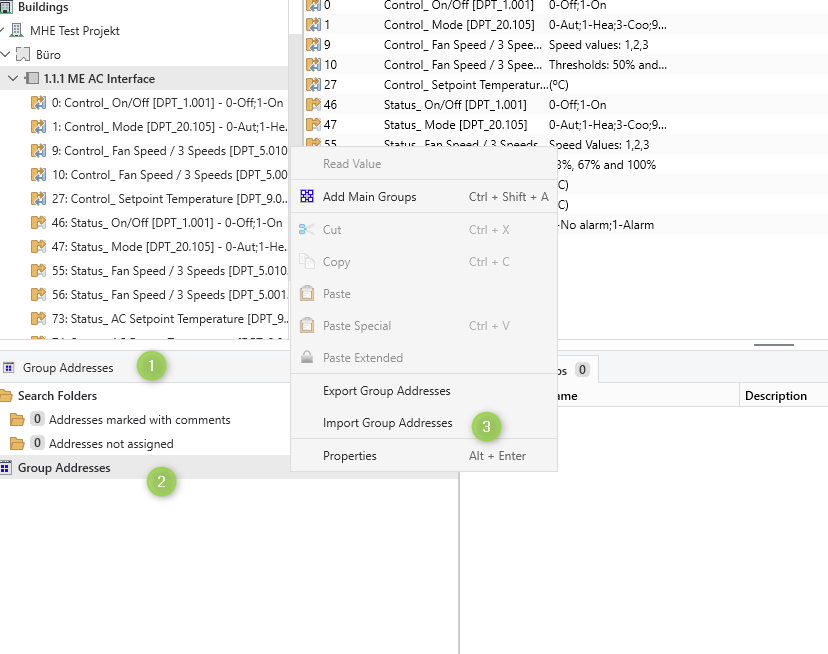

Then go to ETS and open the Groupadress Panel (1) on that panel then right click (2) and select "Import Group Addresses"(3). On the follow-up Window select the previous exporter .CSV file

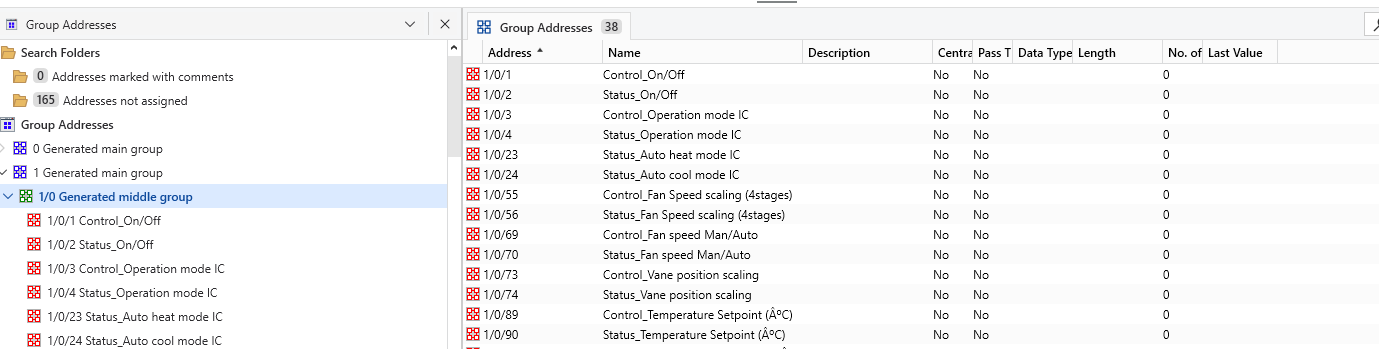

After that, the group addresses will be imported and shown.
