This article explains how to identify what model your Ewon device is.
This article is applicable to:
To move forward reading this article, please have the Ewon serial number available. For more information on how to find the Ewon serial number please read How to Find Order Code/Article Number/Part Number on an Ewon Device? – HMS Support Portal (hms-networks.com).
First, you will learn how to read the serial number of your Ewon, then you will be able to identify which model your device belongs to.

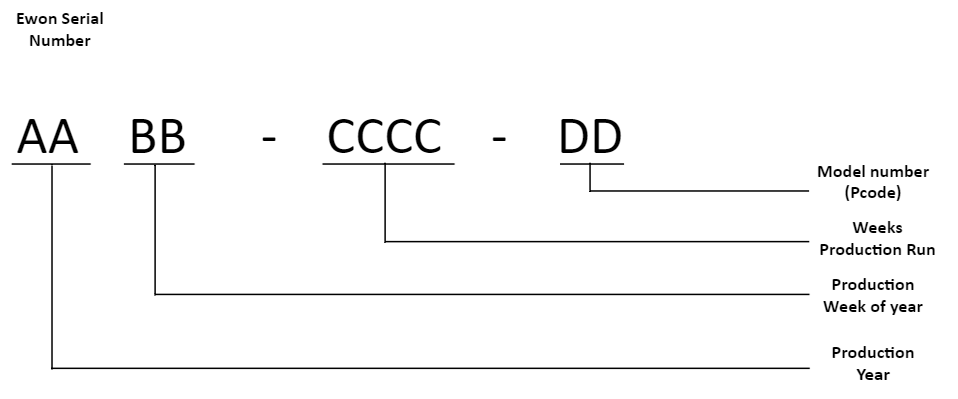

The serial number of the Ewon is composed by the production year, production week of year, weeks production run, and the model number (also known as Pcode).
The last two digits of the device represent the model number of the device, and based on these numbers the model can be identified through the Pcode list shown below:
|
20 |
Ewon Flexy 10x |
57 |
Ewon 2005CD MPI |
|
21 |
Ewon Flexy 20x |
58 |
Ewon 4005CD MPI |
|
22 |
Ewon COSY 131 |
59 |
Ewon 2005CD |
|
24 |
Ewon Flexy 205 |
66 |
Ewon 4001 MPI |
|
25 |
Ewon Cosy+ |
|
|
|
38 |
TM-C |
67 |
Ewon 4101 MPI |
|
39 |
Ewon COSY 141 |
68 |
Ewon 2001 MPI |
|
40 |
Ewon COSY 141 MPI |
69 |
Ewon 2101 MPI |
|
41 |
TM-E |
70 |
Ewon 500 MPI |
|
42 |
TM-H |
71 |
Ewon 4102 |
|
43 |
Ewon 4101CD |
72 |
Ewon 2101 |
|
44 |
Ewon 2101CD MPI |
73 |
Ewon 4101 |
|
45 |
Ewon 4101CD MPI |
74 |
Ewon 2005 |
|
46 |
Ewon 2101CD |
75 |
Ewon 4005 |
|
47 |
Ewon 4001CD |
79 |
Ewon 1002 |
|
48 |
Ewon 2001CD MPI |
86 |
Ewon 2001 |
|
49 |
Ewon 4001CD MPI |
87 |
Ewon 500 |
|
50 |
Ewon 2001CD |
88 |
Ewon 4001 |
|
51 |
TM-E |
89 |
Ewon 4002 |
|
52 |
Ewon 4104CD |
90 |
Ewon 500 v2 |
|
53 |
Ewon 2104CD MPI |
91 |
Ewon 4001 v2 |
|
54 |
Ewon 4104CD MPI |
25 |
Ewon Cosy + |
|
55 |
Ewon 2104CD |
|
|
|
56 |
Ewon 4005CD |
|
|
For example, an Ewon with the serial number 1234-5678-22, then based on the table above this device would be an Ewon Cosy 131 because the last two digits of the serial number is 22.
