In this article, you can find an excel sheet that helps you to calculate the Inter-Character Timeout that could be required if you import a Communicator Classic configuration into our new Communicator ABC3xxx Series.
APPLICABLE PRODUCTS
ABC3xxx Series
PRE-REQUISITES
- Anybus Communicator Classic configuration file
- Anybus Configuration Manager - Communicator RS232-422-485
- Anybus Communicator ABC3xxx
- Inter-Character Timeout Calculator.xlsx file
IN THIS ARTICLE
How to calculate the Value for the Inter-Character Timeout

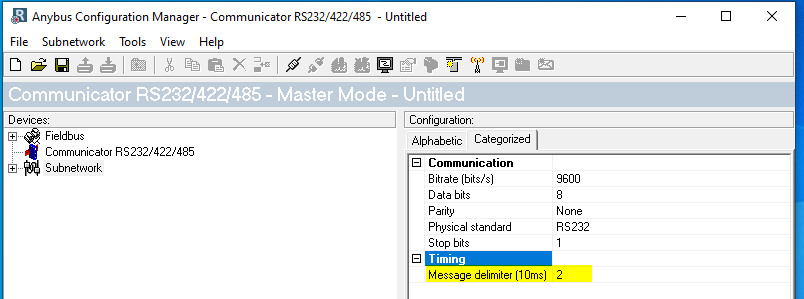

- Open the Communicator Classic Configuration in Anybus Configuration Manager - Communicator RS232-422-485 Software and go to Subnetwork and Note the Message delimiter Value.
- Open the Excel File and insert the Value and set the used Baudrate and note the calculated Inter-Character Timeout value.
