How to update the FW of an MAPS configured Gateway when you are Offline?

02 Feb 2023

This Article describes how you could check if an FW Update is available and apply this FW update to a MAPS-configured Gateway even if not an internet connection on site.



APPLICABLE PRODUCTS

  • AC Interfaces Multi Unit (INBACACA004I000, INMBSFGL016O000, INKNXFGL016O000, INBACHIS016O000, INBACHIS064O000, INMBSHIS016O000, INMBSHIS064O000, INKNXHIS016O000, INKNXHIS064O000, INBACHIT016O000, INBACHIT064O000, INMBSHIT016O000, INMBSHIT064O000, INKNXHIT016O000, INKNXHIT064O000, INKNXLGE016O000, INKNXLGE064O000, INBACMID004I000, INMBSMIT050C000, INMBSMIT100C000, INKNXMIT015C000, INKNXMIT100C000, IN776MHI00SO000, IN776MHI00MO000, IN776MHI00LO000, INBACPAN016O000, INBACPAN064O000, INBACPAN128O000, INMBSPAN016O000, INMBSPAN064O000, INMBSPAN128O000, INKNXPAN016O000, INKNXPAN064O000, INBACSAM004O000, INBACSAM008O000, INBACSAM016O000, INBACSAM064O000, INMBSSAM004O000, INMBSSAM008O000, INMBSSAM016O000, INMBSSAM064O000, INKNXSAM004O000, INKNXSAM008O000, INKNXSAM016O000, INKNXSAM064O000, IN770AIR00SO000, IN770AIR00MO000, IN771AIR00LO000).
  • Cloud Solutions configured via Intesis MAPS: (INSTCMBG0040000, INSTCMBG0080000, INSTCMBG0160000, INSTCMBG0320000).
  • Protocol Translator Gateways configured via Intesis MAPS (IN701KNX1000000, IN701KNX2500000, IN701KNX6000000, IN701KNX1K20000, IN701KNX3K00000, IN7004851000000, IN7004852500000, IN7004856000000, IN7004851K20000, IN7004853K00000, INBACRTR0320000, INBACDAL0640200, INBACDAL1280200, INBACDAL0640500, INBACEIP1K20000, INBACLON1000000, INBACLON2500000, INBACLON6000000, INBACLON1K20000, INBACLON3K00000, INBACMEB0100000, INBACMEB0200000, INBACMEB0600000, INBACMEB1200000, INBACPRT1K20000, INKNXDAL0640200, INMBSDAL0640200, INMBSDAL1280200, INMBSDAL0640500, INKNXMEB0100000, INKNXMEB0200000, INKNXMEB0600000, INKNXMEB1200000, INMBSMEB0100000, INMBSMEB0200000, INMBSMEB0600000, INMBSMEB1200000, INMBSRTR0320000, INMBSOCP0010100, INMBSOCP0200100).



PRE-REQUISITES

Installed MAPS Version > 1.2.0.0



IN THIS ARTICLE

Since MAPS Version 1.2.0.0 the FW files are stored locally on the PC to make it easier for you to Update the FW in a Gateway on Site even if you do not have an Internet connection.



1. Open MAPS.

2. Connect to the Gateway you want to update.

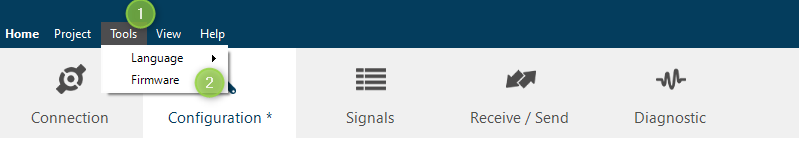

3. Open the Firmwaremanager via Tools (1) -> Firmware (2).

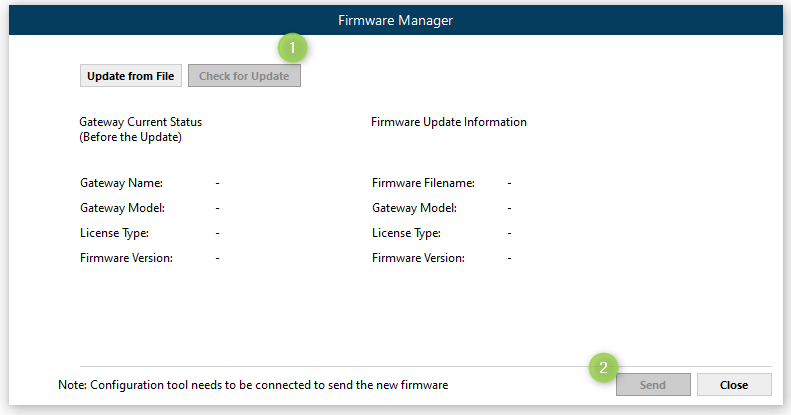

4. then Check for Update (1) if needed and Send (2) the FW to the Gateway.


ADDITIONAL INFO

MAPS | Multi Addressing Points Solution | Intesis

To know more about how to use our Intesis MAPS, check our Intesis MAPS eLearning
